An OUNCE OF PREVENTION. Is worth a POUND OF CURE. A KUE-KEN BALANCED CRUSHER. Prevents Crushing “Aches and Pains”
| These are the “Aches and Pains” | These are the “Cures” that have been tried |
| SMALL REDUCTION RATIOS | TWO OR MORE CRUSHERS, SCREENS, BINS, ELEVATORS, ETC. (very expensive) |
| SEVERE RUBBING AND WEAR BETWEEN JAWS | INCURABLE IN EVERY CRUSHER BUT KUE-KEN BALANCED CRUSHERS. |
| HEAVY UNBALANCED MOVING PARTS | HEAVY FLYWHEELS, SLOW OPERATING SPEED, MASSIVE EXPENSIVE FOUNDATIONS. |
| EXTREME BEARING PRESSURES | HEAVY FRAMES FREQUENT AND COSTLY REPLACEMENT OF BEARINGS, THICK STICKY OIL. |
| POOR LUBRICATION | EXCESS AMOUNT OF LUBRICANT PLUS A GOOD PROPORTION OF GRIT AND DUST. (Sends most crushers to an early grave.) |
| EXCESSIVE WEIGHT | NO CURE. |
Now Consider a KUE-KEN Balanced Crusher
Large reduction ratio (As much as 64 to 1) KUE-KEN principle eliminates rubbing – (less wear- less power)
Every morning part in perfect balance. (No fly- wheels- small foundations)

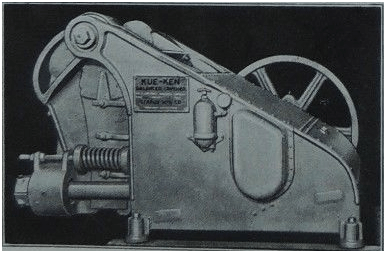

Side view of a streamlined KUE-KEN Crusher. Feed and discharge from any angle. May be used for making a fine mill feed from “mine run” or as a primary or secondary. Jaws quickly adjustable from l” up. Simple safety device for tramp iron.
KUE-KEN design reduces excess weight. (from 20% to 50% of ordinary crushers.)Bearing pressure are only one-fifth as much as in ordinary crushers. (Long life to bearings and elimi nation of heavy frames). Toggles, toggle seats, pitmans and shaft run in a Wheels-small foundations) filtered oil bath, built in and completely sealed against dust and grit.

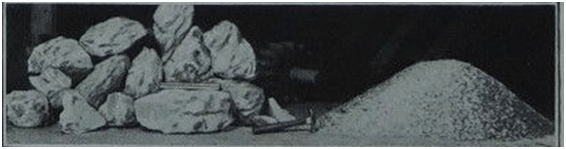

Only a KUE-KEN will take large rocks and crush them fine in a single pass as shown above. This kind of feed to your mill increases your capacity and reduces ball and liner wear. Write today for Bulletin 600 describing several sizes of KUE-KEN Crushers. Also gives details of free crushing test service.
For faster low cost milling, send for Bulletin 302. Describes over 70 sizes of Rib-cone mills and a complete line of mining machinery.
A Guarantee of a Long Life-Free From “Aches and Pains”
